Place of Origin : Changzhou City China
Brand Name : FangSheng
Certification : ISO9001
MOQ : 500 Square Meter/Square Meters
Packaging Details : Wood pallet ,boxes
Delivery Time : Prompt
Payment Terms : T/T or L/C
Supply Ability : 2000㎡/Day
1.perforated panel
2.ventilationrate rate: 25%
3.Brand name:Fangsheng.
Perforated Raised Floor Description:
The structure of ventilation floor is similar with that of anti-static full-steelraised floor but it has hollow cavity without foam stuffing.The upper and lower steel paltes and upper cover of the floor are all punched with ventilation holes.Matched with the full-steel raised floor, the ventilation raised floor is used in the place where ventilation is required under the floor, and the ventilation rate of the floor is 17%-50%.
Perforated Raised Floor Character:
Technical parameter of Perforated Raised Floor:
Type |
(mm) |
Concentrated Load |
(N/M2) |
(N) |
||||
International |
National Standard |
lb |
N |
kg |
||||
AS450-TF |
HDG600 30CQ |
600×600×30 |
≥450 |
≥1960 |
≥200 |
≥8850 |
≥5900 |
≤17% |
AS680-TF |
HDG600 35QD |
600×600×35 |
≥680 |
≥2950 |
≥300 |
≥12500 |
≥8250 |
≤25% |
AS800-TF |
HDG600 35QD |
600×600×35 |
≥800 |
≥3550 |
≥360 |
≥15000 |
≥10650 |
≤25% |
AS1000-TF |
HDG600 35BD |
600×600×35 |
≥1000 |
≥4450 |
≥450 |
≥23000 |
≥13350 |
≤36% |
Notice: 1. It can arbitrary select the laying height of elevated floor.
2. The decorating surface of anti-electrostatic has high wearable melamine wainscot and PVC wainscot of made in
China , joint venture and export.
3. The carrying capacity of pedestal is over 20KN and can match with every type of elevated floor.
Use Area:
pc rooms, electricity office, information center, factory and ventilation area etc.
Install sample:
![]() |

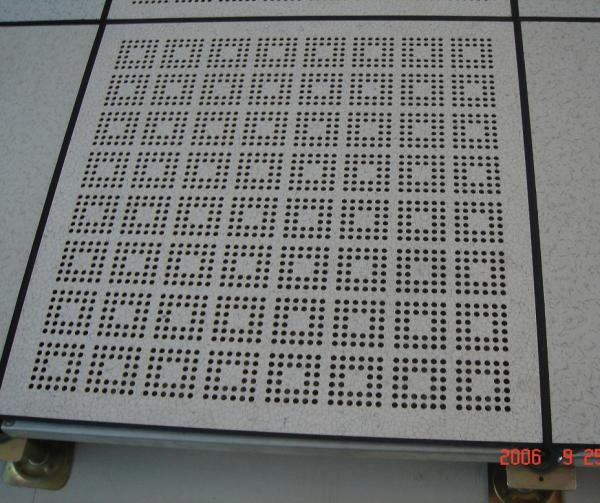

25% Ventilation Rate Anti-rust Perforated Raised Floor AS800-TF 600 × 600 × 35 mm Images |
